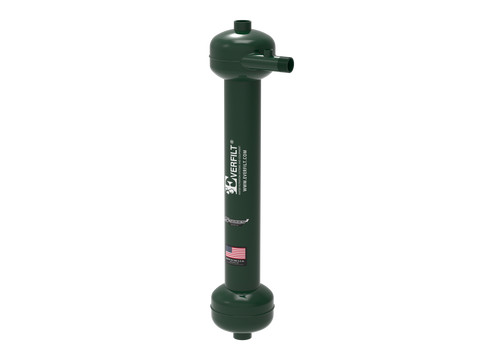

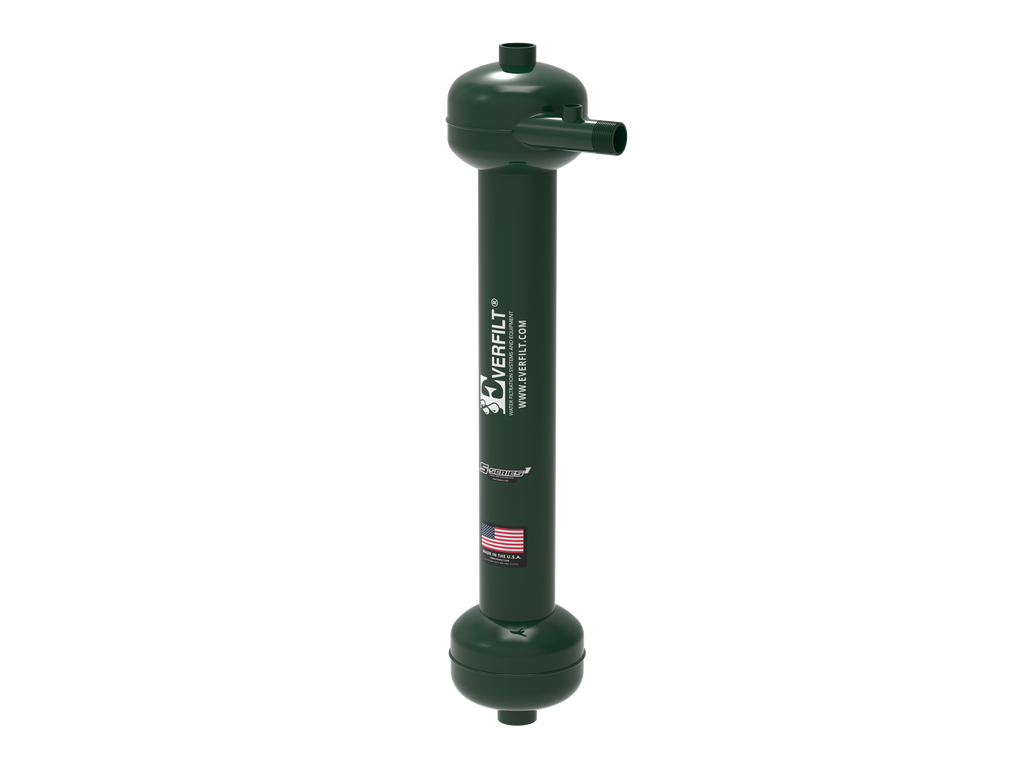

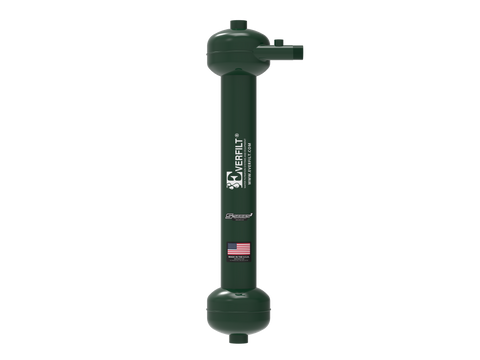

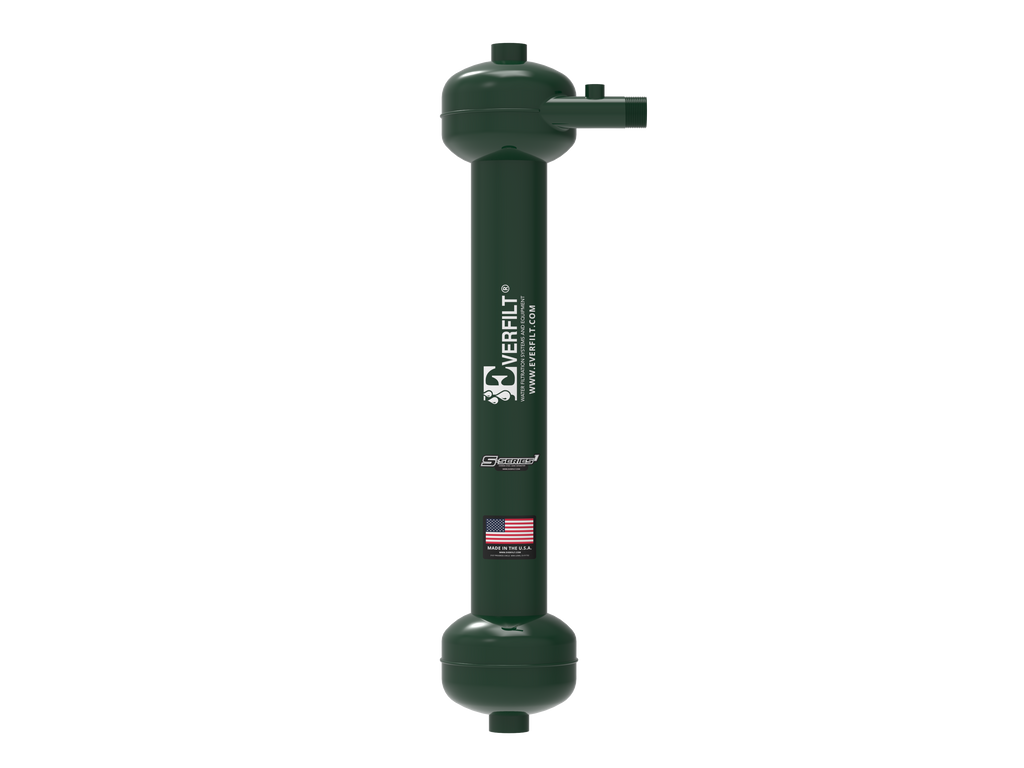

Everfilt® S1-40V-AGR Sand Separator Specifications.
Inlet/Outlet DIA: 1 NPT - 1 FPT
Flow GPM: 18 - 36
Total Length: 30.5"
Head DIA: 6"
Weight: 26.0 lbs.
*Pressure Gauge included
Most commonly used when removing suspended solids or inorganic materials down to 80 microns and rated up-to 150 PSI. Our agricultural centrifugal sand separators are also available in 304SS stainless steel options.
Everfilt's Industry Exclusive E-Flow Design™, accelerates incoming fluid for better solids separation and maximum performance. Whether you're adding the S1-Series Centrifugal Sand Separator as a pre-filter to an existing filter system or a new project, rest assured the S1 Series Centrifugal Sand Separator will provide exceptional results, while prolonging the life of your filter system from premature wear caused by excessive sand or silt present.
The (S1) Centrifugal Sand Separator is designed as a vertical, agricultural sand separator with various sizing options.
