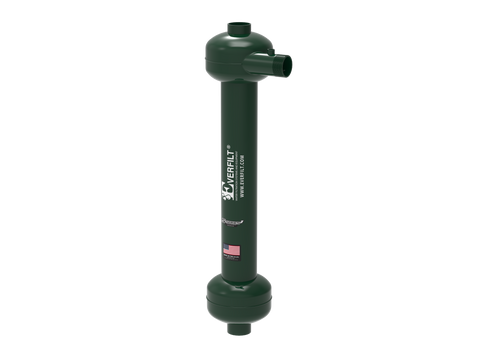

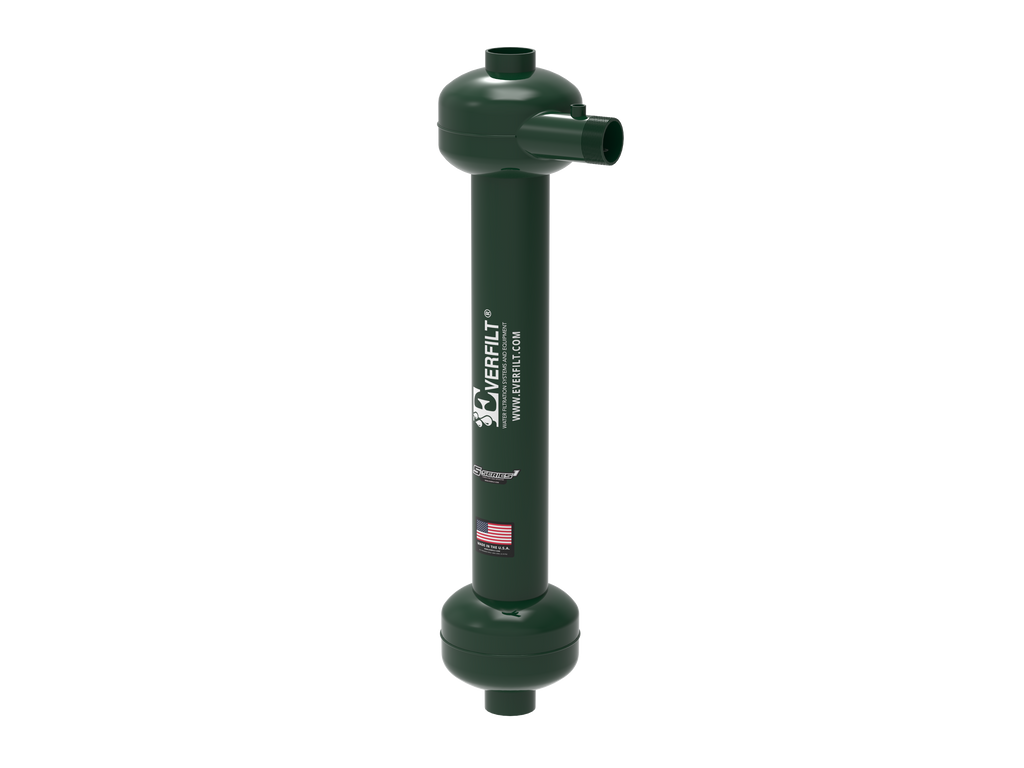

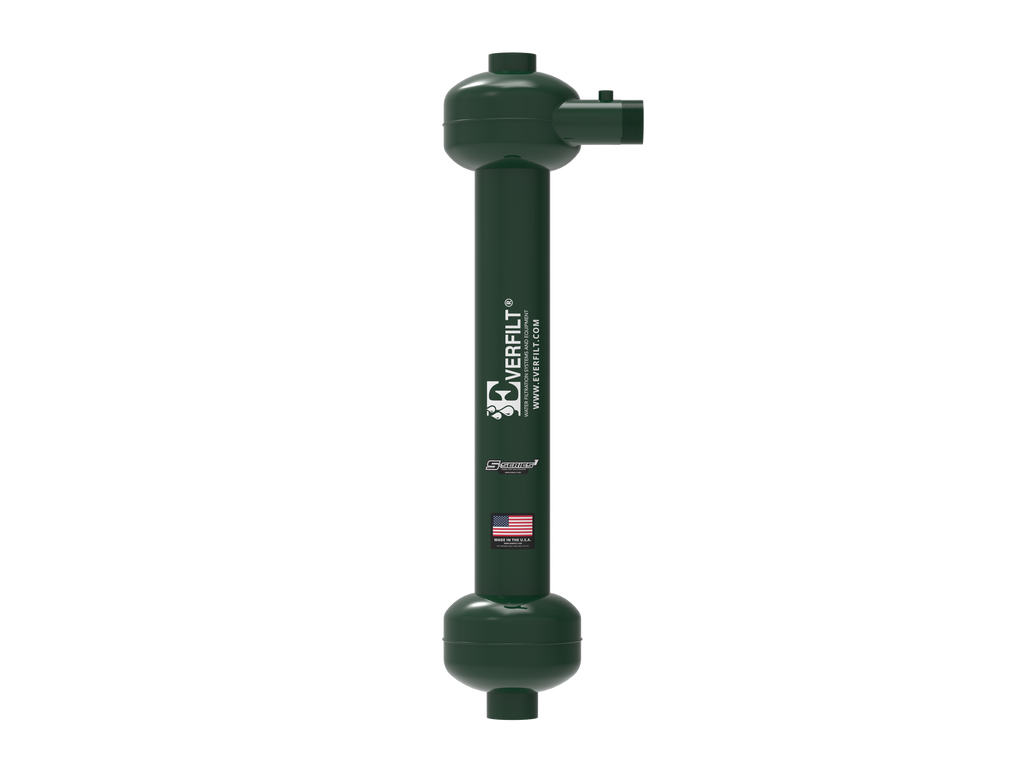

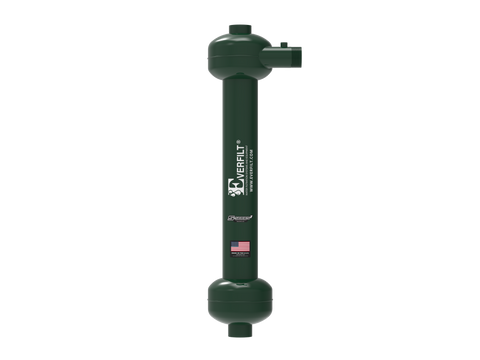

Everfilt® S1-70V-AGR Sand Separator Specifications.
Inlet/Outlet DIA: 2 NPT - 2 FPT
Flow GPM: 63 - 120
Total Length: 38"
Head DIA: 8"
Weight: 45.0 lbs.
*Pressure Gauge included
Most commonly used when removing suspended solids or inorganic materials down to 80 microns and rated up-to 150 PSI. Our agricultural centrifugal sand separators are also available in 304SS stainless steel options.
Everfilt's Industry Exclusive E-Flow Design™, accelerates incoming fluid for better solids separation and maximum performance. Whether you're adding the S-Series Centrifugal Sand Separator as a pre-filter to an existing filter system or a new project, rest assured the S-1 Series Centrifugal Sand Separator will provide exceptional results, while prolonging the life of your filter system from premature wear caused by excessive sand or silt present.
The (S-1) Centrifugal Sand Separator is designed as a vertical, agricultural sand separator with various sizing options.
